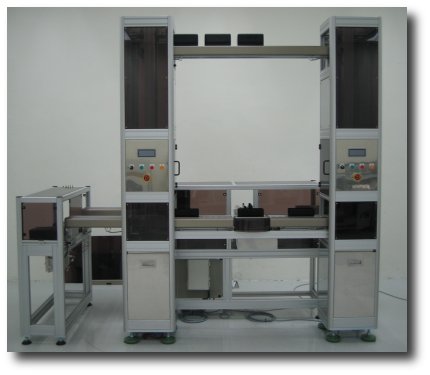

Chameleon™ Clean Room Conveyor System (Class 10)
|
The Chameleon ™ Series Conveyor System is a uniquely designed asynchronous transportation system. Its application suits various transportation needs of any industries, particularly in clean manufacturing environment. It is Class 10 Certified and able to configure in any format.
- Turn Unit.
- Transportation Unit.
- Lifter Unit.
- Slide Unit.
- Maximum widespan is 200mm.
- Maximum load can be up to 5Kg.
- Equipped with various speed of travel for acceleration and deceleration needs, fully programmable..
- Available in single and five motor drives..
|
|
|
iNVENTiT Product

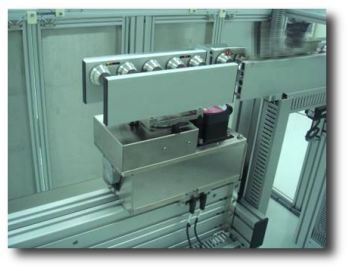

Turn Unit
|
The Turn and Slide Unit rotates clockwise and anti-clockwise directions, at +90 degs, -90 degs and 180 degs.
|
|
|
iNVENTiT Product

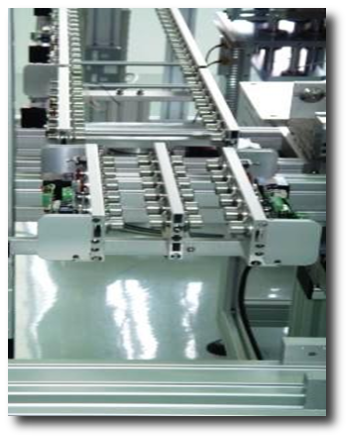

Transportation Unit
|
The Transportation Unit is a bi-directional conveyor and can be configured by an interval of 250mm and up to 3000mm per section.
|
|
|
iNVENTiT Product

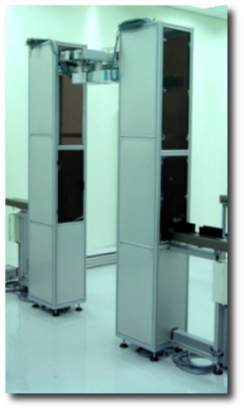

Lifter Unit
|
The Lifter Unit is able to lift loads up to 6000mm maximum.
|
|
|
iNVENTiT Product
Slide Unit
|
The Shutter Transfer Unit has a minimum stroke length of 50mm and up to maximum of 6000mm. |
|
|
|
|
|
|
|
|
|
Chameleon™ Clean Room Conveyor System
